Ring Saw Blades

Laser welded / 3 bond options / 10" cutting depth / For high-speed ring saws

Professional Ring Saw Blades for Deep Concrete Cutting

Ring saw applications require a blade capable of maintaining fast cutting performance while reaching greater cutting depths than conventional handheld saw blades.

DIATOP Ring Saw Blades are designed for high-speed ring saws and provide up to 10" cutting depth for demanding concrete and masonry cutting applications.

Three bond options are available according to aggregate hardness and material type. Different segment configurations are also offered, including Regular, Wave, Turbo, and NiceCut segments.

A drive wheel for K3600 is available as an option.

Type of Equipment: RS / H (Ring Saws / Handheld Saws)

Key Features

• 3 different bonds available.

• 10" cutting depth.

• Works on high-speed ring saws.

• Fast cutting with waved segments.

• Drive wheel for K3600 is optional.

• Laser welded.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm / Remarks

• RRH354008 – 14 x .155 inch / 350 x 4.0 mm / .315 inch / 8 mm / Regular segment

• RWH354008 – 14 x .155 inch / 350 x 4.0 mm / .315 inch / 8 mm / Wave segment

• RTH354008 – 14 x .155 inch / 350 x 4.0 mm / .315 inch / 8 mm / Turbo segment

• RNH354008 – 14 x .155 inch / 350 x 4.0 mm / .315 inch / 8 mm / NiceCut segment

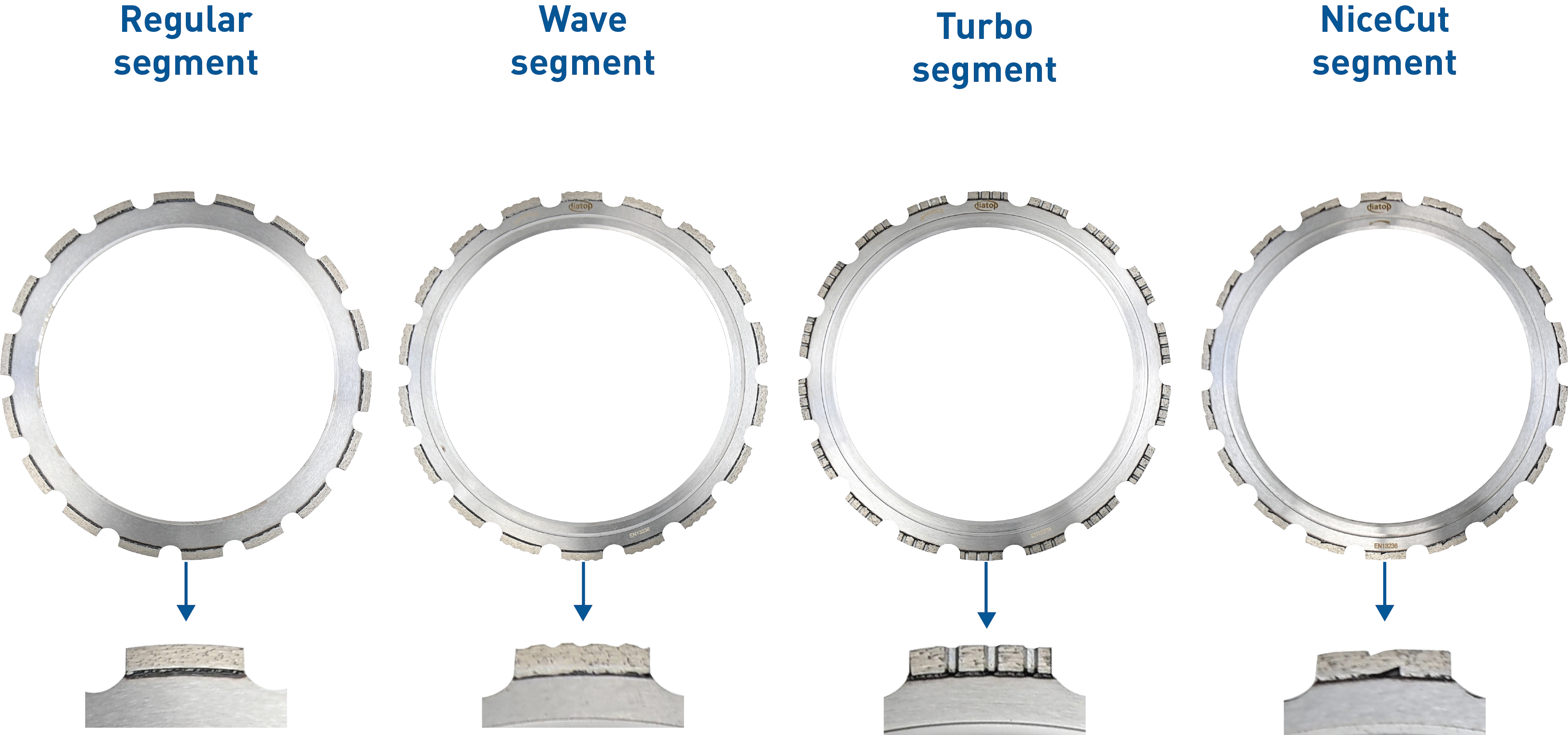

Segment Options

• Regular segment

• Wave segment

• Turbo segment

• NiceCut segment

Bond Selection

Aggregate Hardness / Aggregate / Bond

• Very hard / Quartz, River gravel, Hard granite / S

• Medium hard / Granite, Limestone, Basalt / M

• Soft / Sandstone, Green concrete, Asphalt, Block / H

Typical Applications

ring saw cutting, deep concrete cutting, high-speed ring saw cutting, concrete wall cutting, masonry cutting, quartz aggregate concrete cutting, hard granite cutting, granite cutting, limestone cutting, basalt cutting, sandstone cutting, green concrete cutting, asphalt cutting, block cutting, wave segment ring saw cutting

Q1. What ring saw blade is recommended for deep concrete cutting?

A. DIATOP Ring Saw Blades are designed for high-speed ring saws and provide up to 10" cutting depth. Regular, Wave, Turbo, and NiceCut segment options are available for different cutting requirements.

Q2. What materials can DIATOP Ring Saw Blades cut?

A. Bond options are available for materials and aggregate conditions including quartz, river gravel, hard granite, granite, limestone, basalt, sandstone, green concrete, asphalt, and block.

Q3. What segment options are available for DIATOP Ring Saw Blades?

A. DIATOP Ring Saw Blades are available with Regular, Wave, Turbo, and NiceCut segments. The catalog specifically notes that waved segments provide fast cutting.

For ring saw blade selection guidelines, bond selection, segment selection, operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
