Milling Wheels

Wet / For grinding down and calibration / Teflon core or steel core

Professional Wet Milling Wheel for Stone Calibration and Slab Sizing

Stone calibration and slab sizing require a milling wheel capable of controlled material removal while maintaining a flat and consistent surface.

DIATOP Milling Wheels are designed for grinding down and calibration applications, including sizing granite slabs and fluting.

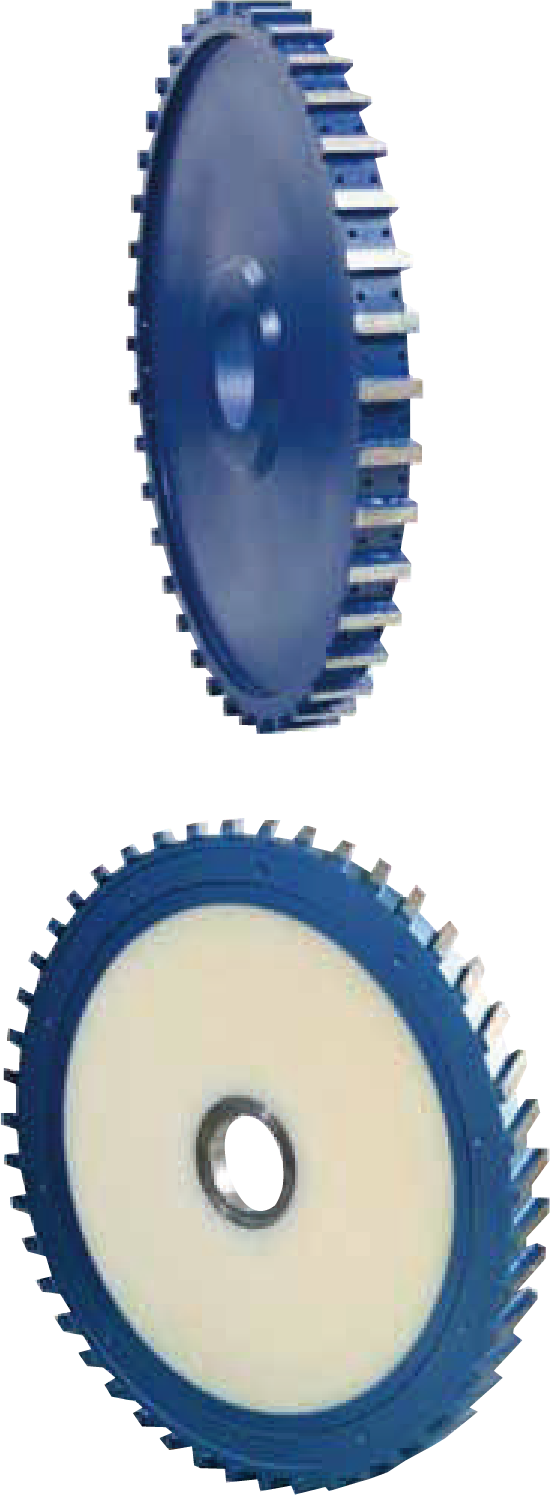

The wheels can be used vertically with stationary machines and are available with either a lightweight Teflon core or a steel core.

Type of Equipment: BS (Bridge Saw)

Key Features

• Designed for grinding down and calibration.

• Suitable for sizing granite slabs.

• Suitable for fluting.

• Can be used vertically with stationary machines.

• Lightweight Teflon core available.

• Steel core available.

• Wet use.

Available Sizes – Teflon Core

Item – Diameter inch / Diameter mm / Segment Height inch / Segment Height mm / Body

• MWT1225 – 12 inch / 300 mm / 1 inch / 25 mm / Teflon core

• MWT1240 – 12 inch / 300 mm / 1 1/2 inch / 40 mm / Teflon core

• MWT1425 – 14 inch / 350 mm / 1 inch / 25 mm / Teflon core

• MWT1430 – 14 inch / 350 mm / 1 1/4 inch / 30 mm / Teflon core

• MWT1440 – 14 inch / 350 mm / 1 1/2 inch / 40 mm / Teflon core

• MWT1450 – 14 inch / 350 mm / 2 inch / 50 mm / Teflon core

• MWT1625 – 16 inch / 400 mm / 1 inch / 25 mm / Teflon core

• MWT1640 – 16 inch / 400 mm / 1 1/2 inch / 40 mm / Teflon core

Available Sizes – Steel Core

Item – Diameter inch / Diameter mm / Segment Height inch / Segment Height mm / Body

• MWS1220 – 12 inch / 300 mm / 3/4 inch / 20 mm / Steel core

• MWS1225 – 12 inch / 300 mm / 1 inch / 25 mm / Steel core

• MWS1430 – 14 inch / 350 mm / 1 1/4 inch / 30 mm / Steel core

• MWS1440 – 14 inch / 350 mm / 1 1/2 inch / 40 mm / Steel core

Operation Parameters

Optimum RPM:

• 12 inch – 1,750 RPM

• 14 inch – 1,550 RPM

• 16 inch – 1,350 RPM

* Arbor: 60/50 mm

Technical Notes

• Wet use

• Applications: Grinding down, calibration, granite slab sizing, fluting

• Machine setup: Vertical use with stationary machines

• Body options: Teflon core / Steel core

• Arbor: 60/50 mm

• Teflon core available for reduced wheel weight

Typical Applications

granite slab calibration, granite slab sizing, stone milling, slab grinding, fluting, bridge saw milling, stationary machine milling, stone calibration, wet stone grinding, stone fabrication

Q1. What milling wheel is recommended for granite slab sizing and calibration?

A. DIATOP Milling Wheels are designed for grinding down and calibration and are suitable for sizing granite slabs as well as fluting.

Q2. What is the difference between the Teflon core and steel core versions?

A. The catalog offers both Teflon core and steel core constructions. The Teflon core version is specifically identified as a lightweight option.

Q3. What RPM is recommended for DIATOP Milling Wheels?

A. The catalog lists optimum speeds of 1,750 RPM for 12-inch wheels, 1,550 RPM for 14-inch wheels, and 1,350 RPM for 16-inch wheels.

For Milling Wheel selection guidelines, body selection, RPM settings, wet operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
