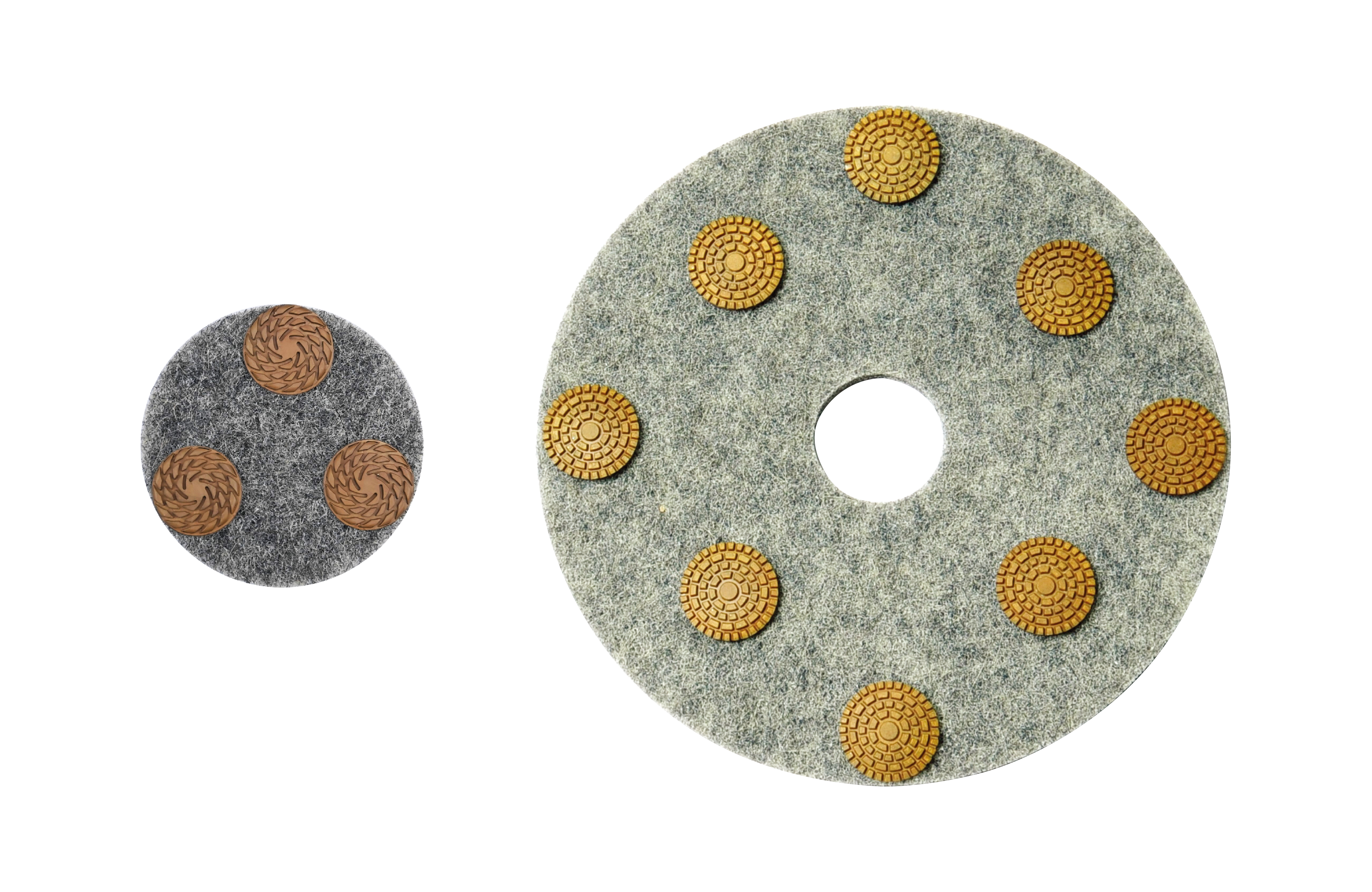

DiaFlush Pads

Wet / Multi-disc resin system / For marble, terrazzo, and stone floors / Easy operation

Professional DiaFlush Pad for Wet Stone Floor Polishing

Marble, terrazzo, and other stone floors require a polishing system that can provide consistent refinement while improving productivity on large floor areas.

DIATOP DiaFlush Pad is designed for wet polishing of marble and terrazzo floors and is suitable for use with floor buffers, orbital machines, and planetary machines.

Its multi-disc resin system helps reduce labor time, while the modular resin layout makes the pad easy to use across different floor sizes and polishing stages.

Type of Equipment: FG (Floor Grinder) / FM (Floor Machine) / MP

Key Features

• Very easy to use.
• Excellent for marble and terrazzo.
• Light-colored resin option available for light-colored marble.
• Multi-disc system can reduce labor by up to 50%.
• Suitable for floor buffers.
• Suitable for orbital machines.
• Suitable for planetary machines.
• Designed for wet stone floor polishing.
• Available in multiple diameters from 8 inch to 17 inch.
• Full grit range from #50 to #3000.
• #10,000 available for extra high-gloss polishing.

Available Sizes

Item – Diameter inch / Diameter mm / Grit / No. of Resin

8 inch / 200 mm / 3 Resin

• DFP 8-050 – 8 inch / 200 mm / #50 / 3
• DFP 8-100 – 8 inch / 200 mm / #100 / 3
• DFP 8-200 – 8 inch / 200 mm / #200 / 3
• DFP 8-400 – 8 inch / 200 mm / #400 / 3
• DFP 8-800 – 8 inch / 200 mm / #800 / 3
• DFP 8-1500 – 8 inch / 200 mm / #1500 / 3
• DFP 8-3000 – 8 inch / 200 mm / #3000 / 3

9 inch / 230 mm / 4 Resin

• DFP 9-050 – 9 inch / 230 mm / #50 / 4
• DFP 9-100 – 9 inch / 230 mm / #100 / 4
• DFP 9-200 – 9 inch / 230 mm / #200 / 4
• DFP 9-400 – 9 inch / 230 mm / #400 / 4
• DFP 9-800 – 9 inch / 230 mm / #800 / 4
• DFP 9-1500 – 9 inch / 230 mm / #1500 / 4
• DFP 9-3000 – 9 inch / 230 mm / #3000 / 4

11 inch / 275 mm / 5 Resin

• DFP 11-050 – 11 inch / 275 mm / #50 / 5
• DFP 11-100 – 11 inch / 275 mm / #100 / 5
• DFP 11-200 – 11 inch / 275 mm / #200 / 5
• DFP 11-400 – 11 inch / 275 mm / #400 / 5
• DFP 11-800 – 11 inch / 275 mm / #800 / 5
• DFP 11-1500 – 11 inch / 275 mm / #1500 / 5
• DFP 11-3000 – 11 inch / 275 mm / #3000 / 5

14 inch / 355 mm / 6 Resin

• DFP 14-050 – 14 inch / 355 mm / #50 / 6
• DFP 14-100 – 14 inch / 355 mm / #100 / 6
• DFP 14-200 – 14 inch / 355 mm / #200 / 6
• DFP 14-400 – 14 inch / 355 mm / #400 / 6
• DFP 14-800 – 14 inch / 355 mm / #800 / 6
• DFP 14-1500 – 14 inch / 355 mm / #1500 / 6
• DFP 14-3000 – 14 inch / 355 mm / #3000 / 6

17 inch / 430 mm / 8 Resin

• DFP 17-050 – 17 inch / 430 mm / #50 / 8
• DFP 17-100 – 17 inch / 430 mm / #100 / 8
• DFP 17-200 – 17 inch / 430 mm / #200 / 8
• DFP 17-400 – 17 inch / 430 mm / #400 / 8
• DFP 17-800 – 17 inch / 430 mm / #800 / 8
• DFP 17-1500 – 17 inch / 430 mm / #1500 / 8
• DFP 17-3000 – 17 inch / 430 mm / #3000 / 8

* #10,000 is available for extra high-gloss polishing.

Technical Notes

• Product Type: DiaFlush Pad
• Equipment: FG (Floor Grinder) / FM (Floor Machine) / MP
• Polishing Method: Wet
• Suitable Materials: Marble / Terrazzo / Stone Floors
• Machine Compatibility: Floor Buffer / Orbital Machine / Planetary Machine
• Diameter Options: 200 mm / 230 mm / 275 mm / 355 mm / 430 mm
• Resin Quantity: 3 / 4 / 5 / 6 / 8
• Standard Grit Options: #50 / #100 / #200 / #400 / #800 / #1500 / #3000
• Extra High-Gloss Option: #10,000
• Light-Colored Resin Option: Available for light-colored marble

Typical Applications

marble floor polishing, terrazzo floor polishing, stone floor polishing, wet floor polishing, high-gloss marble polishing, terrazzo finishing, floor buffer polishing, orbital machine polishing, planetary machine polishing, commercial stone floor maintenance

Q1. What materials is the DiaFlush Pad suitable for?

A. It is designed primarily for wet polishing of marble and terrazzo and can also be used for stone floor polishing.

Q2. What machines can be used with the DiaFlush Pad?

A. It is suitable for floor buffers, orbital machines, and planetary machines.

Q3. Is an extra high-gloss grit available?

A. Yes. In addition to the standard #50 to #3000 grit range, #10,000 is available for extra high-gloss polishing.

For DiaFlush Pad selection, grit progression, wet stone polishing, machine compatibility, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
