Big Dot Resin Discs

Dry / 5 resin dots / Scratch removal / Transitional polishing

Professional Big Dot Resin Disc for Scratch Removal and Polishing Preparation

After metal grinding, deep scratch patterns can remain on the floor and need to be refined before moving into the main resin polishing stages.

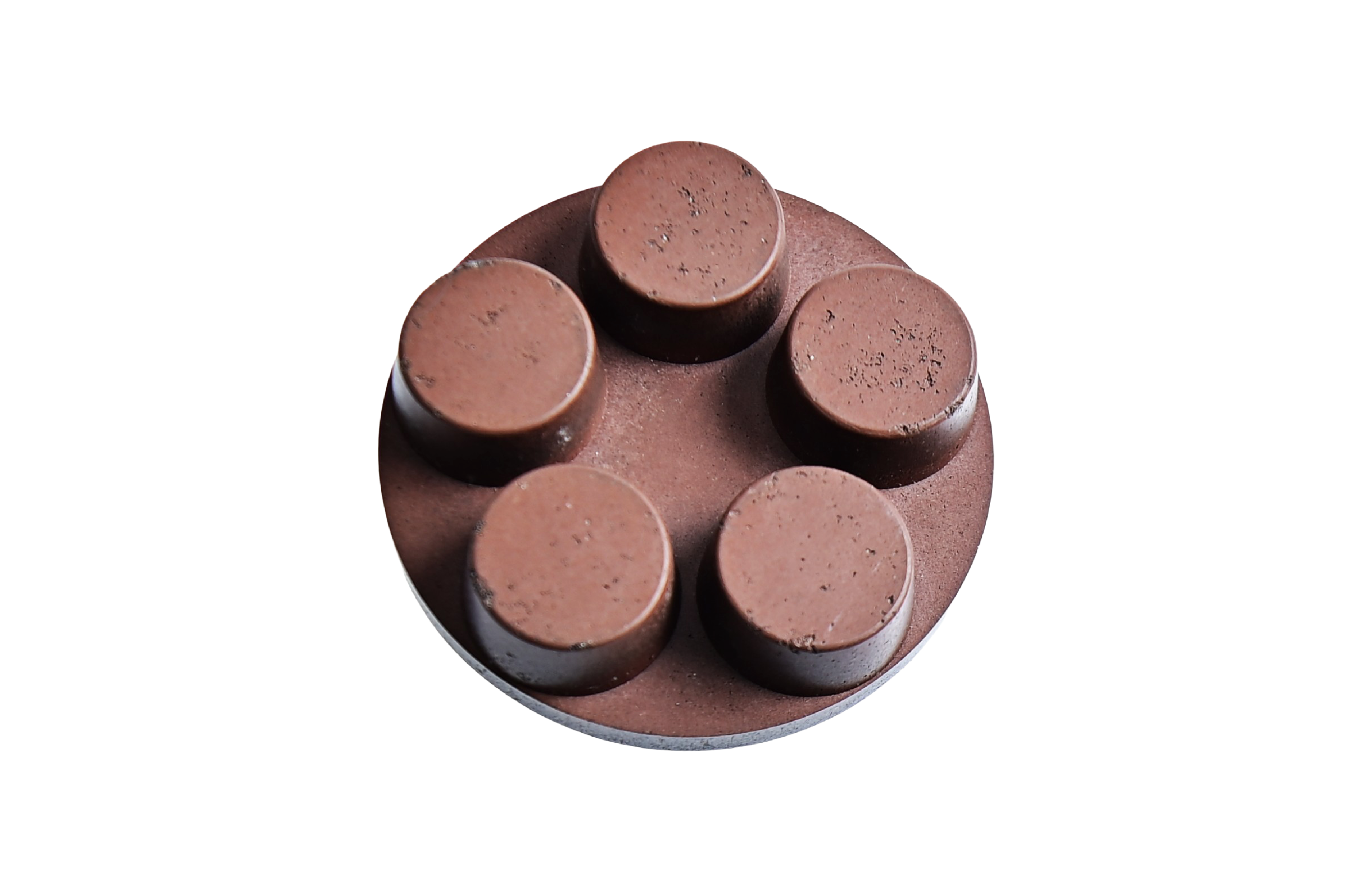

DIATOP Big Dot Resin Disc features five resin dots, each measuring Ø22 mm × 11 mm high, and is designed to remove scratches left behind by metal diamonds.

Its open dot layout helps release heat efficiently during dry operation, while the raised resin construction allows the resin to be used effectively through its working life.

Type of Equipment: FG (Floor Grinder)

Key Features

• Unique resin disc with 5 resin dots.
• Each resin dot measures Ø22 mm × 11 mm high.
• Helps dissipate heat during dry operation.
• Designed to remove scratches left by metal diamonds.
• Suitable for preparing the surface for the polishing process.
• Can reduce the need for early resin polishing steps at #50, #100, and #200.
• High base design helps maximize use of the resin.
• Dry use.
• Available in #50, #100, and #200 grits.

Available Sizes

Item – Diameter inch / Diameter mm / Grit

• SCHV 050 – 3 inch / 74 mm / #50
• SCHV 100 – 3 inch / 74 mm / #100
• SCHV 200 – 3 inch / 74 mm / #200

Technical Notes

• Product Type: 5-Dot Resin Disc
• Equipment: FG (Floor Grinder)
• Grinding Method: Dry
• Diameter: 74 mm / 3 inch
• No. of Resin Dots: 5
• Resin Dot Size: Ø22 mm × 11 mm
• Grit Options: #50 / #100 / #200
• Application Stage: Metal-to-Resin Transition / Scratch Removal

Typical Applications

metal scratch removal, concrete polishing preparation, transitional polishing, metal-to-resin transition, dry floor polishing, scratch pattern removal, concrete floor refinement, resin polishing preparation

Q1. What is the Big Dot Resin Disc designed for?

A. It is designed to remove scratches left behind by metal diamonds and prepare the floor for the resin polishing process.

Q2. What is the benefit of the 5-dot design?

A. The open resin-dot layout helps release heat during dry operation while providing strong contact for scratch removal.

Q3. What grit options are available?

A. The Big Dot Resin Disc is available in #50, #100, and #200 grits.

For Big Dot Resin Disc selection, scratch removal, metal-to-resin transition, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
