Hybrid Edge Polishing Discs

Wet / For granite, marble, quartz, and ceramics / Straight and profile edge polishing

Professional Wet Hybrid Edge Polishing Disc for Multiple Stone Materials

Edge polishing applications often require a disc capable of working across different stone materials while maintaining consistent performance on both straight and profiled edges.

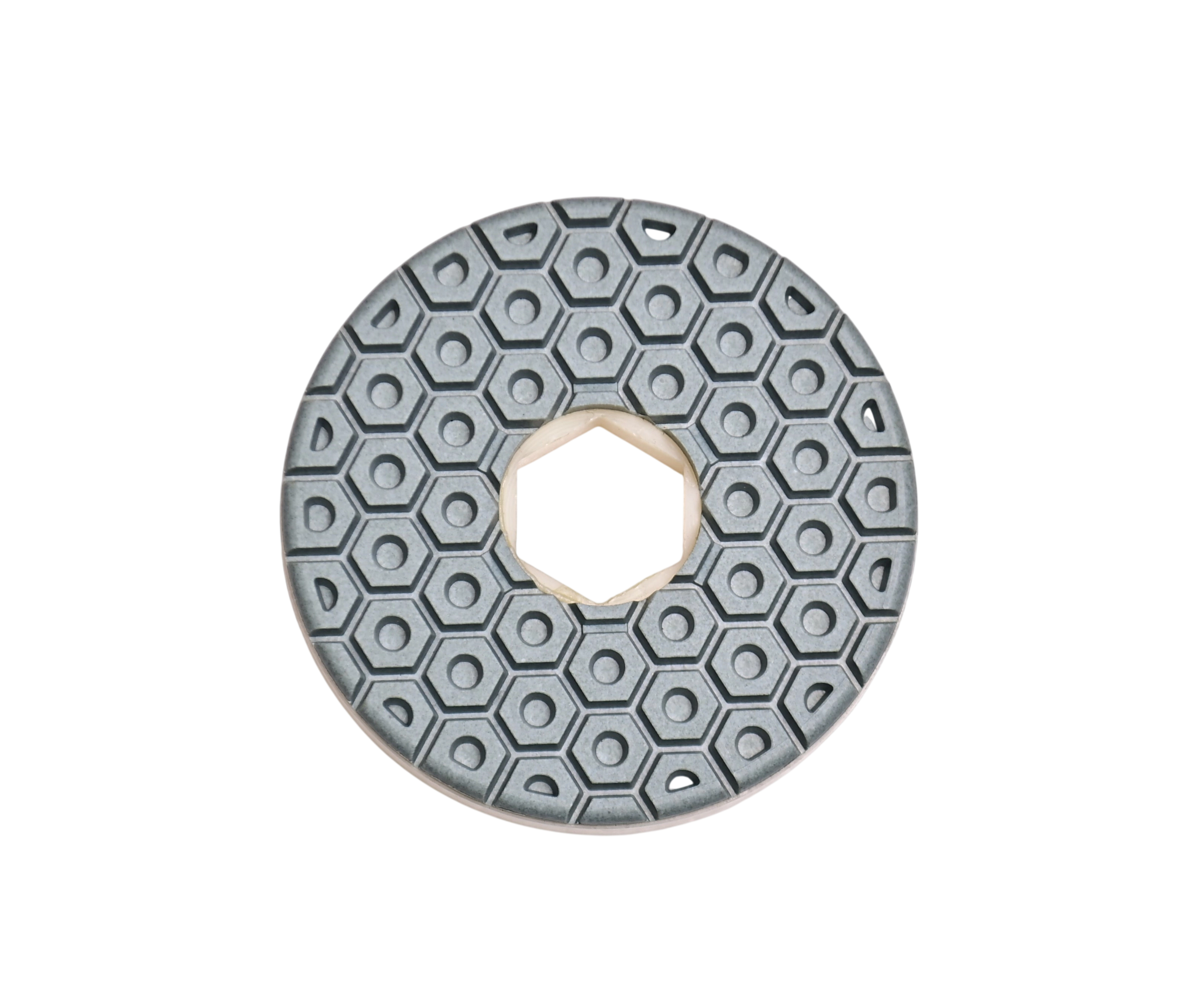

DIATOP Hybrid Edge Polishing Disc is designed for wet polishing of granite, marble, quartz, and ceramics.

The disc is suitable for both straight edges and profile edges and is available in a full grit sequence from #50 to #3000, followed by a White Buff option for final finishing.

Key Features

• Suitable for granite.

• Suitable for marble.

• Suitable for quartz.

• Suitable for ceramics.

• Designed for straight edge polishing.

• Suitable for profile edge polishing.

• Wet use.

• Full grit sequence from #50 to #3000.

• White Buff available for final finishing.

• 5 inch / 125 mm diameter.

Available Sizes

Item – Diameter inch / Diameter mm / Grit

• HEPD5-050 – 5 inch / 125 mm / #50

• HEPD5-100 – 5 inch / 125 mm / #100

• HEPD5-200 – 5 inch / 125 mm / #200

• HEPD5-400 – 5 inch / 125 mm / #400

• HEPD5-800 – 5 inch / 125 mm / #800

• HEPD5-1500 – 5 inch / 125 mm / #1500

• HEPD5-3000 – 5 inch / 125 mm / #3000

• HEPD5-BW – 5 inch / 125 mm / Buff White

Operation Parameters

• Lower grits #50–#400: 2,000–3,000 RPM

• Higher grits #800–#3000: 1,500–2,500 RPM

Technical Notes

• Product Type: Hybrid Edge Polishing Disc

• Wet use

• Diameter: 5 inch / 125 mm

• Grit Range: #50, #100, #200, #400, #800, #1500, #3000

• Final Buff Option: Buff White

• Suitable Materials: Granite, marble, quartz, ceramics

• Suitable Edge Types: Straight edge, profile edge

• Lower Grit RPM: 2,000–3,000

• Higher Grit RPM: 1,500–2,500

Typical Applications

granite edge polishing, marble edge polishing, quartz edge polishing, ceramic edge polishing, straight edge polishing, profile edge polishing, wet stone polishing, countertop edge finishing, progressive edge polishing, final white buffing, stone fabrication

Q1. What materials can the Hybrid Edge Polishing Disc polish?

A. The catalog specifies granite, marble, quartz, and ceramics.

Q2. Can the Hybrid Edge Polishing Disc be used on both straight and profiled edges?

A. Yes. The catalog specifically states that it is suitable for both straight edges and profile edges.

Q3. What RPM ranges are recommended?

A. The catalog specifies 2,000–3,000 RPM for lower grits #50–#400 and 1,500–2,500 RPM for higher grits #800–#3000.

For Hybrid Edge Polishing Disc selection, grit sequence, RPM settings, straight or profile edge applications, wet polishing conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
