Cyclone Cups

Dry / Resin cup wheel / Soft-touch grinding / Low vibration

Professional Resin Cup Wheel for Smooth, Low-Vibration Grinding

Stone grinding and surface finishing often require a grinding cup that provides a softer grinding feel while reducing vibration during operation.

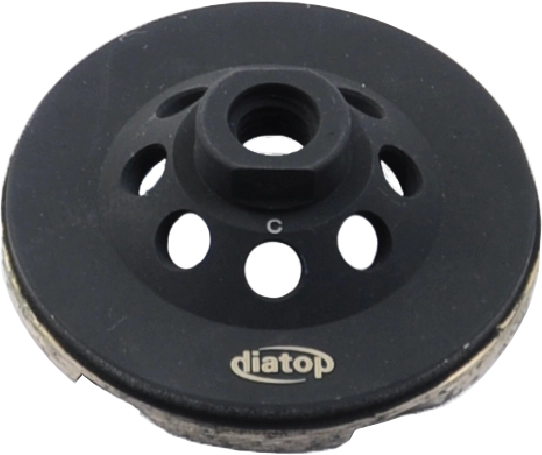

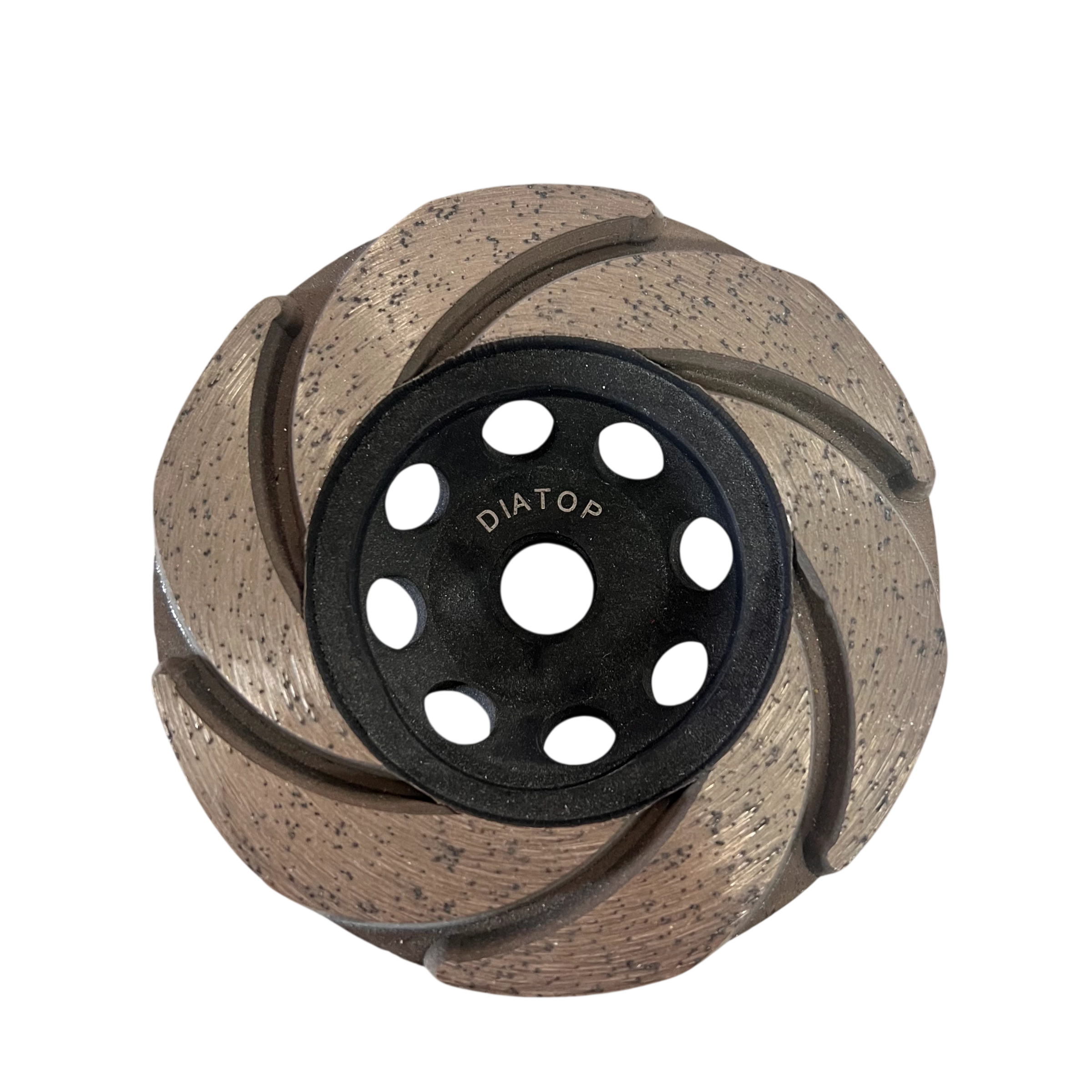

DIATOP CYCLONE Resin Cup is designed for dry grinding applications with a resin-bond construction.

The resin design provides a soft touch during grinding and helps reduce vibration, while maintaining long service life.

The wheel is available in coarse, medium, and fine grit options for different grinding stages.

Type of Equipment: HG (Handheld Grinder)

Key Features

• Long life.

• Soft touch with resin construction.

• Less vibration.

• Dry grinding.

• Coarse grit available.

• Medium grit available.

• Fine grit available.

Available Sizes

Item – Diameter inch / Diameter mm / Grit

• CXR 100C – 4 inch / 100 mm / Coarse

• CXR 100M – 4 inch / 100 mm / Medium

• CXR 100F – 4 inch / 100 mm / Fine

* Thread: M14, 5/8"-11

Technical Notes

• Wheel Type: Resin Cup

• Diameter: 4 inch / 100 mm

• Dry grinding

• Grit Options: Coarse, Medium, Fine

• Thread Options: M14, 5/8"-11

• Resin construction

• Designed for reduced vibration

Typical Applications

stone grinding, granite grinding, resin cup grinding, surface grinding, dry grinding, low-vibration grinding, countertop fabrication, stone fabrication, handheld grinder use

Q1. What grinding cup is recommended when lower vibration is required?

A. DIATOP CYCLONE Resin Cup is designed with a resin construction that provides a soft grinding touch and less vibration.

Q2. What grit options are available for CYCLONE Resin Cup?

A. The catalog lists Coarse, Medium, and Fine grit options.

Q3. What size and thread options are available?

A. CYCLONE Resin Cup is available in a 4 inch (100 mm) diameter with M14 and 5/8"-11 thread options.

For resin cup selection guidelines, grit selection, thread compatibility, dry grinding conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
