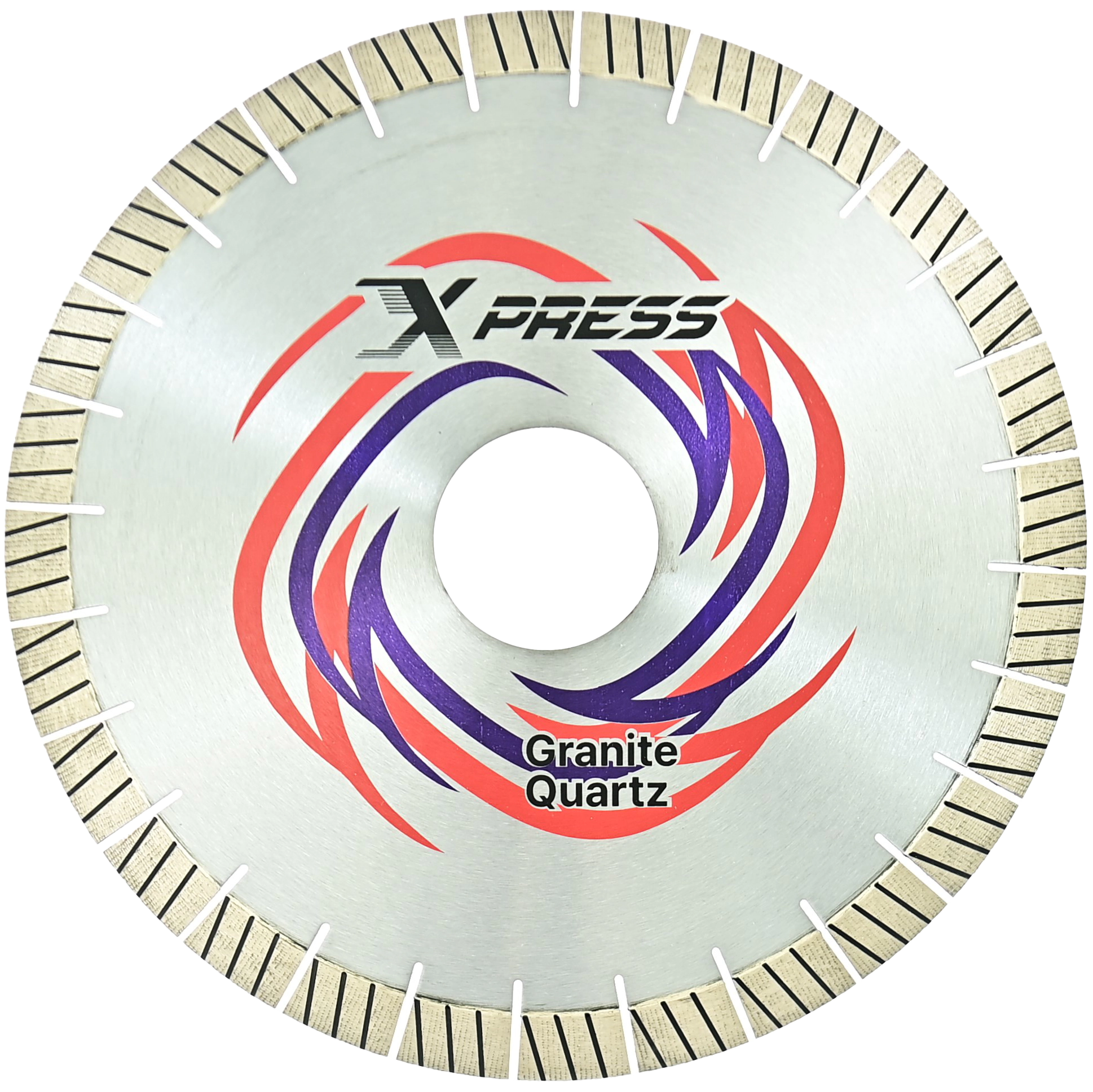

VOLCANO XPRESS Turbo Slanted

Silver brazed / Wet / Patterned diamond technology / Slanted turbo segments

Professional Slanted Turbo Bridge Saw Blade for Very Hard Granite and Quartz

Very hard granite and quartz require a bridge saw blade capable of maintaining fast cutting performance, straight cutting, and stable operation throughout slab processing.

VOLCANO XPRESS Turbo Slanted is designed for professional bridge saw cutting of very hard granite and quartz.

The blade uses high-technology patterned diamonds for long service life and features slanted turbo segments for very fast cutting performance.

Precise side clearance supports straight cutting and helps prevent wobbling, while high-technology silver brazing and strict torque testing on both sides of the segments support safe operation.

Type of Equipment: BS (Bridge Saw)

Key Features

• High-technology patterned diamonds for long service life.

• Excellent bridge saw blade for very hard granite and quartz.

• Fastest cutting blade for granite with slanted turbo segments.

• Precise side clearance for straight cutting.

• Precise side clearance helps prevent wobbling.

• High-technology silver brazing.

• Strict torque test on both sides of the segments.

• Slanted turbo grooves for faster cutting.

• Wet cutting.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• NSXI 353225 – 14 x .125 inch / 350 x 3.2 mm / 1 inch / 25 mm

• NSXI 403225 – 16 x .125 inch / 400 x 3.2 mm / 1 inch / 25 mm

* Bore hole diameter: 60/50 mm

Technical Notes

• Segment design: Slanted Turbo

• Slanted turbo grooves

• Segment height: 25 mm

• Bore hole diameter: 60/50 mm

• Silver brazed

• Wet cutting

• Patterned diamond technology

• Strict torque test on both sides of the segments

Typical Applications

very hard granite cutting, quartz cutting, granite slab cutting, quartz slab cutting, bridge saw cutting, slanted turbo segment cutting, countertop fabrication, stone fabrication, slab processing, architectural stone fabrication, monument fabrication, stone workshop manufacturing

Q1. What bridge saw blade is recommended for very fast cutting of hard granite and quartz?

A. VOLCANO XPRESS Turbo Slanted is designed for very hard granite and quartz and uses slanted turbo segments for very fast cutting performance.

Q2. How does VOLCANO XPRESS Turbo Slanted support straight and stable cutting?

A. The blade uses precise side clearance for straight cutting and to help prevent wobbling during operation.

Q3. What are the main segment features of VOLCANO XPRESS Turbo Slanted?

A. VOLCANO XPRESS Turbo Slanted features 25 mm slanted turbo segments with slanted turbo grooves for faster cutting, together with patterned diamond technology, silver brazing, and strict torque testing on both sides of the segments.

For recommended RPM settings, feed rates, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
