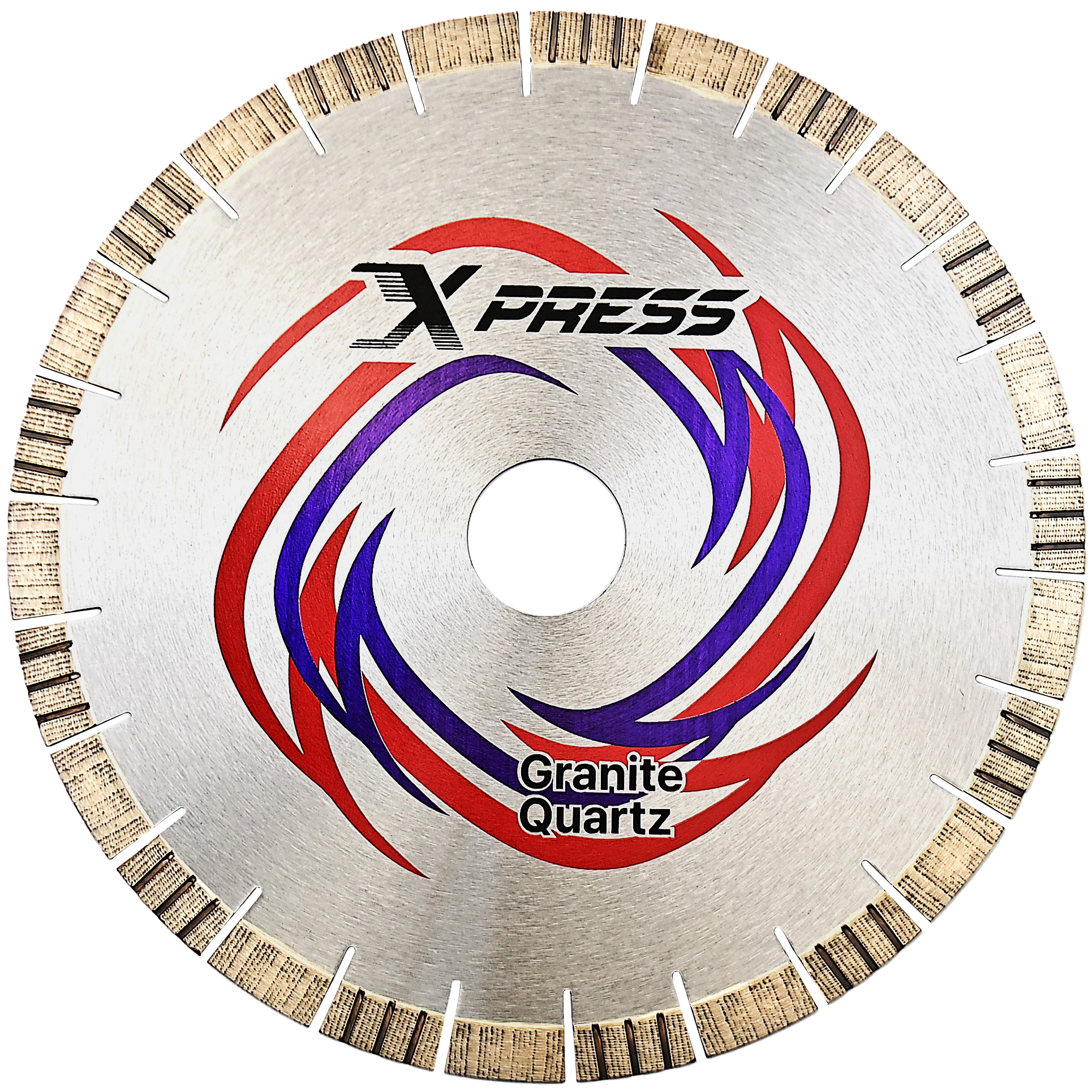

VOLCANO XPRESS Turbo

Silent blade for granite & quartz / Silver brazed / Wet / Patterned diamond technology

Professional Turbo Bridge Saw Blade for Very Hard Granite and Quartz

Very hard granite and quartz require a bridge saw blade capable of maintaining fast cutting performance, straight cutting, and stable operation throughout slab processing.

VOLCANO XPRESS Turbo is designed for professional bridge saw cutting of very hard granite and quartz.

The blade uses high-technology patterned diamonds for long service life and features turbo segments for the fastest granite cutting performance in this range.

A 20 mm segment height with deep turbo-shaped segments is applied on one side of each segment, while precise side clearance supports straight cutting and helps prevent wobbling.

Type of Equipment: BS (Bridge Saw)

Key Features

• High-technology patterned diamonds for long service life.

• Excellent bridge saw blade for very hard granite and quartz.

• Fastest cutting blade for granite with turbo segments.

• 20 mm segment height.

• Deep turbo shape on one side of each segment.

• Precise side clearance for straight cutting.

• Precise side clearance helps prevent wobbling.

• High-technology silver brazing.

• Strict torque test on both sides of the segments.

• Silent blade.

• Wet cutting.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• NSXT 353220 – 14 x .125 inch / 350 x 3.2 mm / .8 inch / 20 mm

• NSXT 403220 – 16 x .125 inch / 400 x 3.2 mm / .8 inch / 20 mm

• NSXT 453620 – 18 x .141 inch / 450 x 3.6 mm / .8 inch / 20 mm

* Bore hole diameter: 60/50 mm

Technical Notes

• Segment design: Turbo

• Deep turbo shape on one side of each segment

• Segment height: 20 mm

• Bore hole diameter: 60/50 mm

• Silver brazed

• Silent blade

• Wet cutting

• Patterned diamond technology

• Strict torque test on both sides of the segments

Typical Applications

very hard granite cutting, quartz cutting, granite slab cutting, quartz slab cutting, bridge saw cutting, turbo segment stone cutting, countertop fabrication, stone fabrication, slab processing, architectural stone fabrication, monument fabrication, stone workshop manufacturing

Q1. What bridge saw blade is recommended for very fast granite cutting?

A. VOLCANO XPRESS Turbo is designed for very hard granite and quartz and is described in the catalog as the fastest cutting blade for granite with turbo segments.

Q2. How does VOLCANO XPRESS Turbo support straight and stable cutting?

A. The blade uses precise side clearance for straight cutting and to help prevent wobbling during operation.

Q3. What are the main segment features of VOLCANO XPRESS Turbo?

A. VOLCANO XPRESS Turbo uses 20 mm segments with a deep turbo shape on one side of each segment. It also features patterned diamond technology, high-technology silver brazing, and strict torque testing on both sides of the segments.

For recommended RPM settings, feed rates, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
