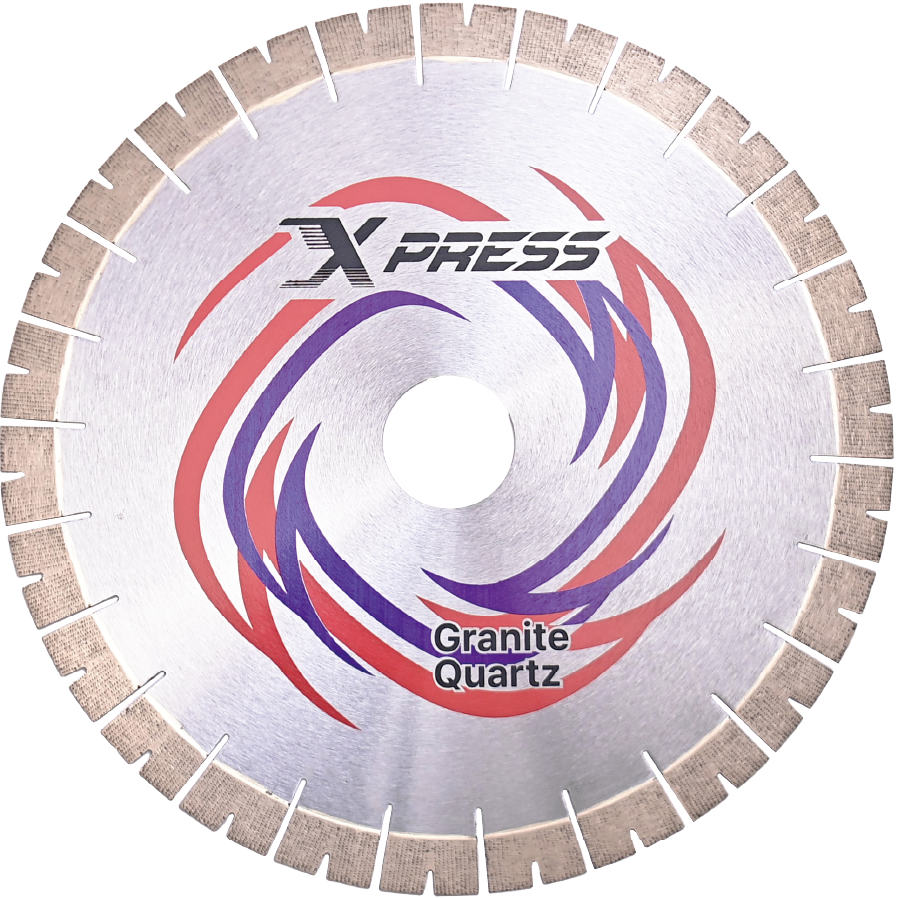

VOLCANO XPRESS with Small Notch

Silver brazed / Silent / Wet / Patterned diamond technology

Powerful Bridge Saw Blade for Hard Granite and Quartz

Hard granite and quartz require a bridge saw blade capable of maintaining fast cutting performance, straight cutting, and stable edge quality during slab fabrication.

VOLCANO XPRESS with Small Notch is designed as a powerful bridge saw blade for cutting hard granite and quartz.

The blade uses newly developed patterned diamond technology and 25 mm segments for very fast cutting and longer life.

Precise side clearance supports straight cutting, while the catalog specifies no wobbling and no chipping during operation.

Type of Equipment: BS (Bridge Saw)

Key Features

• Powerful bridge saw blade for cutting hard granite and quartz.

• Newly developed patterned diamond technology.

• Very fast cutting.

• Longer life with 25 mm segments.

• Precise side clearance for straight cutting.

• No wobbling.

• No chipping.

• Small-notch segment design.

• Silent blade.

• Silver brazed.

• Wet cutting.

Available Sizes

Item – D x T inch / D x T mm / Segment Height inch / Segment Height mm

• NSXH 353225 – 14 x .125 inch / 350 x 3.2 mm / 1 inch / 25 mm

• NSXH 403225 – 16 x .125 inch / 400 x 3.2 mm / 1 inch / 25 mm

• NSXH 453625 – 18 x .141 inch / 450 x 3.6 mm / 1 inch / 25 mm

• NSXH 503625 – 20 x .141 inch / 500 x 3.6 mm / 1 inch / 25 mm

* Bore hole diameter: 60/50 mm

Technical Notes

• Segment design: Small notch

• Segment height: 25 mm

• Bore hole diameter: 60/50 mm

• Silver brazed

• Silent blade

• Wet cutting

• Patterned diamond technology

Typical Applications

hard granite cutting, quartz cutting, granite slab cutting, quartz slab cutting, bridge saw cutting, countertop fabrication, stone fabrication, slab processing, architectural stone fabrication, monument fabrication, stone workshop manufacturing

Q1. What bridge saw blade is recommended for hard granite and quartz?

A. VOLCANO XPRESS with Small Notch is designed for professional bridge saw cutting of hard granite and quartz. It uses newly developed patterned diamond technology and 25 mm segments for very fast cutting and longer life.

Q2. Can VOLCANO XPRESS with Small Notch provide clean, straight cuts?

A. Yes. The catalog specifies precise side clearance for straight cutting, along with no wobbling and no chipping.

Q3. What are the main design features of VOLCANO XPRESS with Small Notch?

A. VOLCANO XPRESS with Small Notch features newly developed patterned diamond technology, a small-notch design, 25 mm segments, precise side clearance, silent construction, silver brazing, and wet cutting.

For recommended RPM settings, feed rates, wet-cutting operating parameters, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
