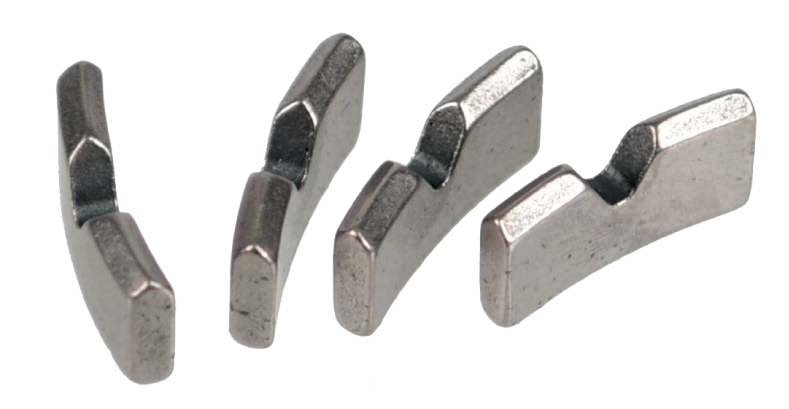

Professional V-Slot Roof Top Core Drill Segments

DIATOP V Slot Roof Top Segments are diamond core drill segments featuring a distinctive V-slot rooftop profile.

The range is available for multiple core bit diameters, with segment dimensions matched to the applicable bit size.

Segment thickness increases according to diameter range, while all listed specifications use a 10.0 mm segment height.

Available specifications cover core bit diameters from 2 inches up to 16 inches.

Key Features

• V-slot rooftop segment design.

• Available for multiple core bit diameters.

• Segment dimensions vary according to core bit diameter.

• 10.0 mm segment height across all listed sizes.

Available Sizes

Item – Diameter inch / Diameter mm / Segment L x T x H mm

• VSRT50 – 2 inch / 50 mm / 24 x 3.0 x 10.0 mm

• VSRT57 – 2 1/4 inch / 57 mm / 24 x 3.0 x 10.0 mm

• VSRT60 – 2 3/8 inch / 60 mm / 24 x 3.5 x 10.0 mm

• VSRT63 – 2 1/2 inch / 63 mm / 24 x 3.5 x 10.0 mm

• VSRT70 – 2 3/4 inch / 70 mm / 24 x 3.5 x 10.0 mm

• VSRT76 – 3 inch / 76 mm / 24 x 3.5 x 10.0 mm

• VSRT83 – 3 1/4 inch / 83 mm / 24 x 3.5 x 10.0 mm

• VSRT89 – 3 1/2 inch / 89 mm / 24 x 3.5 x 10.0 mm

• VSRT102 – 4 inch / 102 mm / 24 x 3.5 x 10.0 mm

• VSRT115 – 4 1/2 inch / 115 mm / 24 x 3.5 x 10.0 mm

• VSRT127 – 5 inch / 127 mm / 24 x 3.5 x 10.0 mm

• VSRT140 – 5 1/2 inch / 140 mm / 24 x 3.5 x 10.0 mm

• VSRT152 – 6 inch / 152 mm / 24 x 3.5 x 10.0 mm

• VSRT200 – 8 inch / 200 mm / 24 x 3.5 x 10.0 mm

• VSRT230 – 9 inch / 230 mm / 24 x 4.0 x 10.0 mm

• VSRT250 – 10 inch / 250 mm / 24 x 4.0 x 10.0 mm

• VSRT200 – 12 inch / 200 mm / 24 x 4.5 x 10.0 mm

• VSRT350 – 14 inch / 350 mm / 24 x 4.5 x 10.0 mm

• VSRT400 – 16 inch / 400 mm / 24 x 5.0 x 10.0 mm

Technical Notes

• Segment Type: V Slot Roof Top

• Segment Height: 10.0 mm

• Segment Thickness: 3.0–5.0 mm depending on diameter specification.

• Segment Length: 24 mm for all listed sizes.

Typical Applications

core drilling, concrete core drilling, diamond core drilling, core drill segment replacement, diamond core segment retipping, construction core drilling, concrete hole drilling, V-slot core drill segment

Q1. What core drill segment is available with a V-slot rooftop profile?

A. DIATOP V Slot Roof Top Segments feature a V-slot rooftop design and are available across multiple core bit diameter specifications from 2 inches to 16 inches.

Q2. What segment height is used for DIATOP V Slot Roof Top Segments?

A. All V Slot Roof Top Segments listed in the catalog have a 10.0 mm segment height.

Q3. How do I select the correct V Slot Roof Top Segment size?

A. Select the segment according to the required core bit diameter. The catalog provides corresponding segment thicknesses from 3.0 mm to 5.0 mm, with a 24 mm segment length and 10.0 mm segment height.

For core drill segment selection guidelines, diameter matching, segment dimensions, operating conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
