Wet Core Segments / Regular

Wet / Regular segment / For wet core drill bits

Professional Wet Core Drill Segments for Concrete Drilling Applications

Core drill segment replacement requires accurately sized diamond segments that match the diameter range and barrel configuration of the core drill bit.

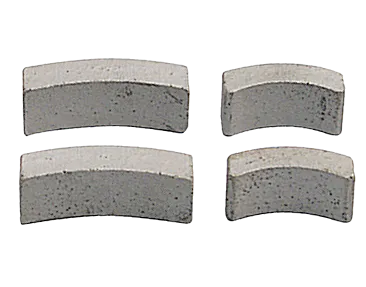

DIATOP WET CORE SEGMENTS / Regular are designed for wet core drilling applications and are available in multiple diameter ranges.

Segment length, thickness, and height vary by diameter range to match different core bit sizes and drilling requirements.

Available specifications cover core bit diameters from 1 inch up to 24 inches.

Key Features

• Regular wet core drill segments.
• Available for multiple core bit diameter ranges.
• Segment dimensions vary according to bit diameter.
• Suitable for wet core drilling applications.
• Available for core bit diameters from 1 inch to 24 inches.

Available Sizes

Item – Diameter inch / Diameter mm / Segment L x T x H mm

• WCS25 – 1–1 1/4 inch / 25–32 mm / 15 x 3.0 x 7 mm
• WCS35 – 1 3/8 inch / 35–45 mm / 15 x 3.0 x 7 mm
• WCS52 – 2–2 3/8 inch / 52–60 mm / 24 x 3.0 x 7 mm
• WCS60 – 2 1/2–2 3/4 inch / 60–70 mm / 24 x 3.5 x 7 mm
• WCS80 – 3–3 1/2 inch / 80–100 mm / 24 x 3.5 x 7 mm
• WCS107 – 4–5 inch / 107–130 mm / 24 x 3.5 x 7 mm
• WCS140 – 5 1/2–7 inch / 140–180 mm / 24 x 4.0 x 7 mm
• WCS180 – 8 inch / 180–200 mm / 24 x 4.0 x 7 mm
• WCS230 – 9–10 inch / 230–250 mm / 24 x 4.0 x 7 mm
• WCS300 – 12–14 inch / 300–350 mm / 24 x 4.5 x 7 mm
• WCS400 – 16–18 inch / 400–450 mm / 24 x 5.0 x 7 mm
• WCS500 – 20–24 inch / 500–600 mm / 24 x 5.5 x 7 mm

Technical Notes

• Segment Type: Regular
• Wet use
• Segment height: 7 mm
• Segment thickness varies from 3.0 mm to 5.5 mm depending on diameter range.
• Segment length is 15 mm for smaller diameters and 24 mm for larger diameter ranges.

Typical Applications

wet core drilling, concrete core drilling, core drill segment replacement, diamond core segment retipping, reinforced concrete drilling, construction core drilling, concrete hole drilling

Q1. What wet core drill segments are available for different core bit diameters?

A. DIATOP WET CORE SEGMENTS / Regular are available for core bit diameters from 1 inch to 24 inches, with segment dimensions selected according to the applicable diameter range.

Q2. What segment height is used for DIATOP Regular Wet Core Segments?

A. All Regular Wet Core Segments shown in the catalog use a 7 mm segment height, while segment length and thickness vary depending on the core bit diameter.

Q3. How do I select the correct Regular Wet Core Segment size?

A. Select the segment according to the core bit diameter range. The catalog provides corresponding segment length, thickness, and height specifications for each diameter range from 25 mm up to 600 mm.

For core drill segment selection guidelines, diameter matching, segment dimensions, wet drilling conditions, and troubleshooting guidance, please visit the DIATOP Tech Notes section.
